AIM MXP Strada Dash Logger - Street Icons

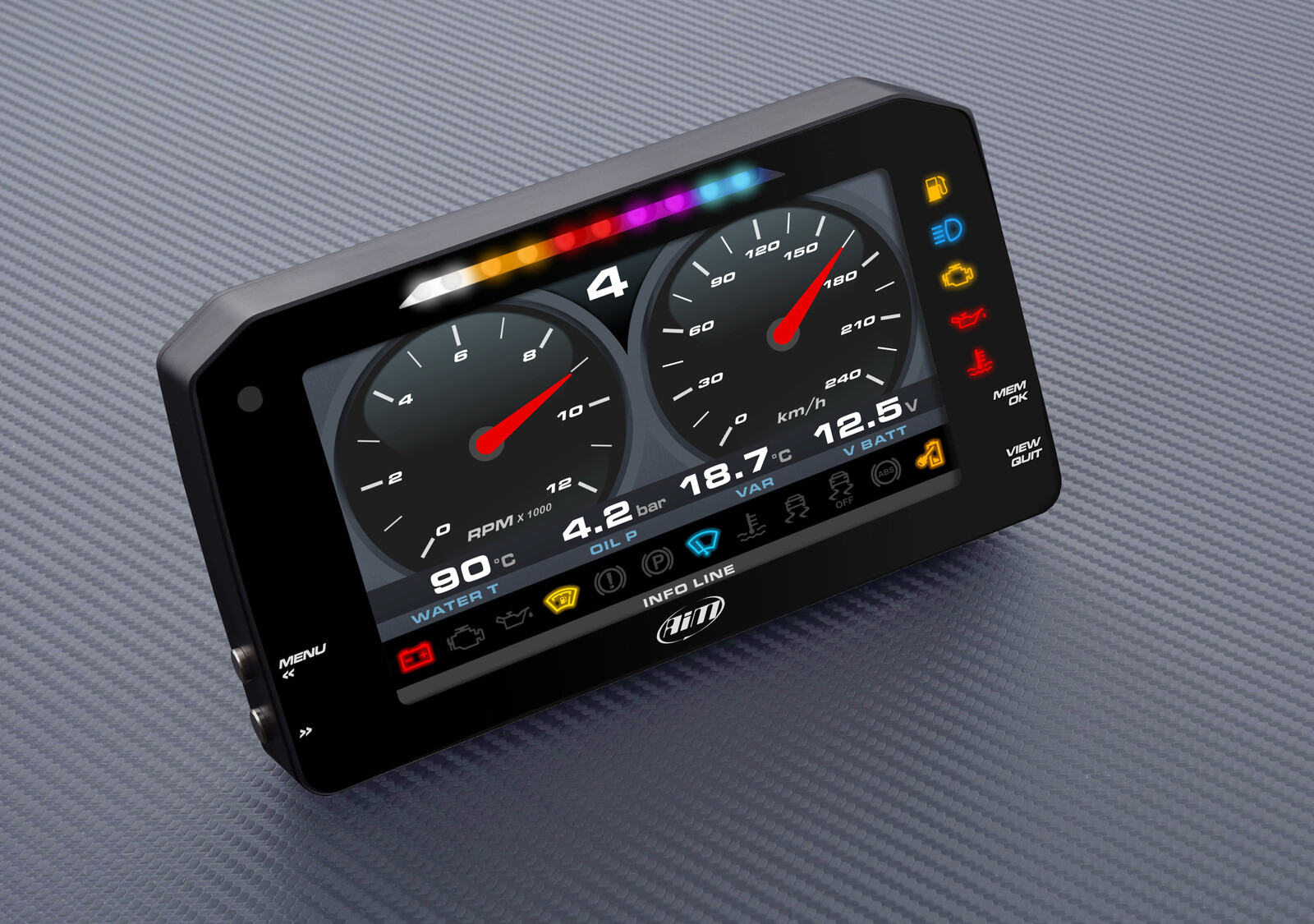

The 6" AIM MXP Strada Dash Display, known as the 'Street Icons Version', is designed to provide essential engine ECU data through intuitive icon displays, featuring indicators for lighting, fuel, oil, water, and more. This specialised dash display is particularly well-suited for bike builders and automotive enthusiasts looking to enhance their vehicle monitoring capabilities.

Compared to the 5" MXS display, the AIM MXP Strada Dash Display Street Icons Version offers a significant increase in display area, providing users with a larger and more detailed interface within a similar form factor. This dash logger incorporates advanced features such as an integrated shift array, customisable multicolor alarms, drag-and-drop multi-page configuration, and seamless connectivity options including Wi-Fi and USB.

Key components of the MXP Strada include a GPS module, a 9-axis inertial platform (featuring accelerometer, gyro, and magnetometer), 8 fully configurable analog inputs, 6 digital inputs, and support for predefined math channels and secondary CAN connections. This system excels in performance with a sampling rate of 1,000Hz per channel and boasts robust data acquisition capabilities from the ECU, GPS, and inertial platform.

Additionally, the MXP Strada supports expansion modules to further enhance performance and data acquisition, allowing users to add up to eight expansion modules for increased functionality and flexibility in monitoring and analysing vehicle performance metrics. With Motorsport-grade connectors and 4 GB of internal memory, the AIM MXP Strada Dash Display Road Icons Version is a comprehensive solution for capturing, analysing, and optimising vehicle data for racing and high-performance applications.

Included:

• MXP 1.3 Strada Dash Logger
• 14 Pin CAN Harness (ECU) and 23 pin connector
• USB download cable

User Manuals & Tech Sheets:

• Technical Data Sheet
• Digital Outputs
• Installation Template (Scaled 1:1)
• Rear Camera Technical Sheet
