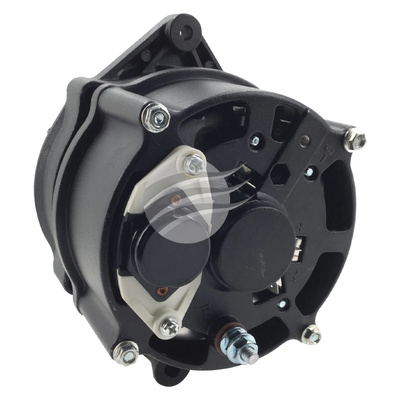

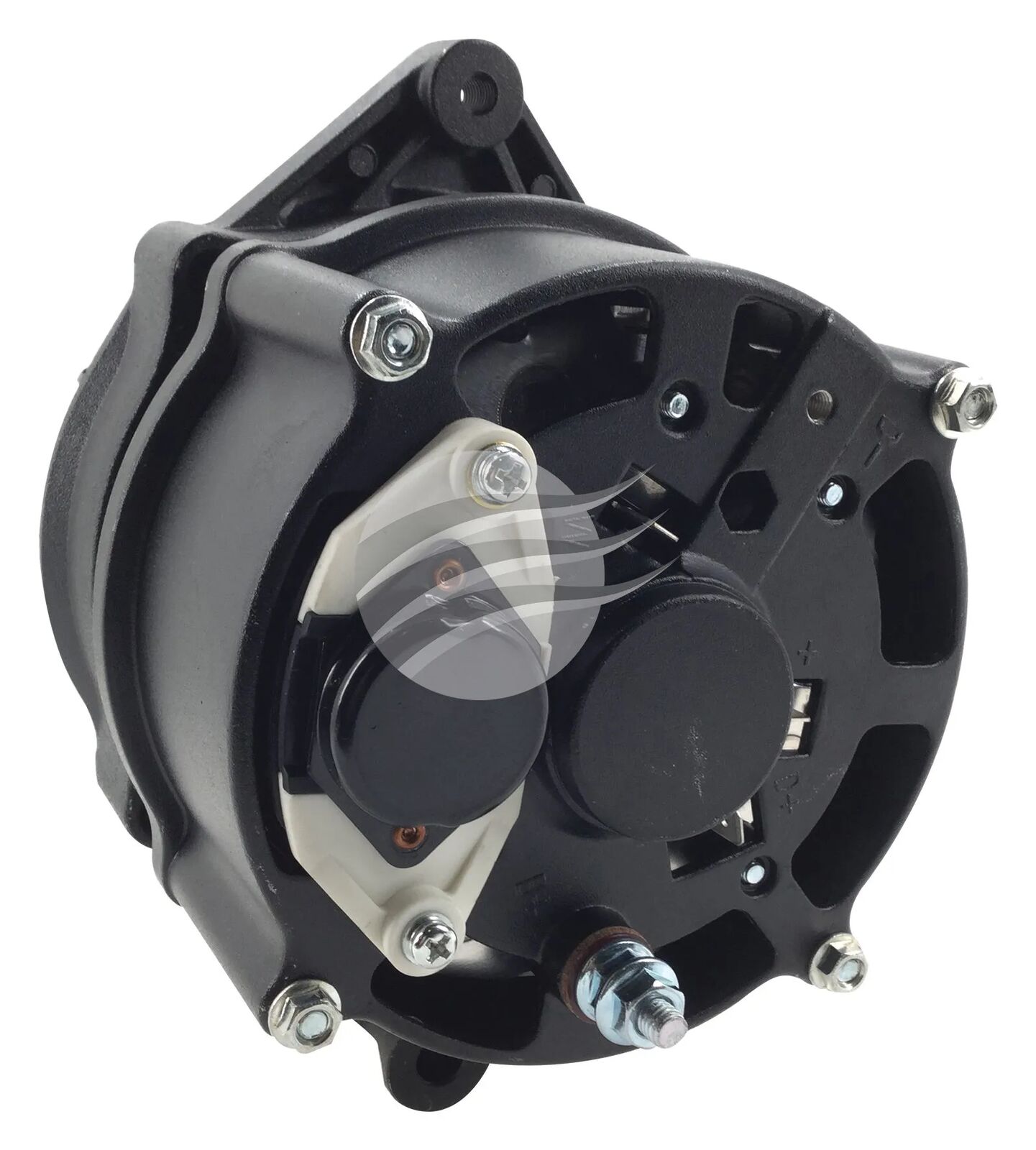

Jaylec Black Series Performance Alternator 110A - Holden

The Black Series is an expanding range of high performance alternators designed for use on performance vehicles.

Made for vehicles that demand more than what O.E. manufacturer alternators can offer. Built to a high standard where reliability and performance are key, with the alternators designed specifically for vehicles that demand more than what the OE alternator offered – higher output (amperage) at lower cut-in speeds.

Intended to run high-demand components at idle, such as dual thermos-fans, injection systems, air conditioning, electric steering, monitoring systems, upgraded lighting systems and winches, while maintaining the battery at the desired levels.

With a rigorous design and testing phase, combined with efficient cooling fans and the highest quality bearings ensure that they can replace and outperform the most popular units in the market today.

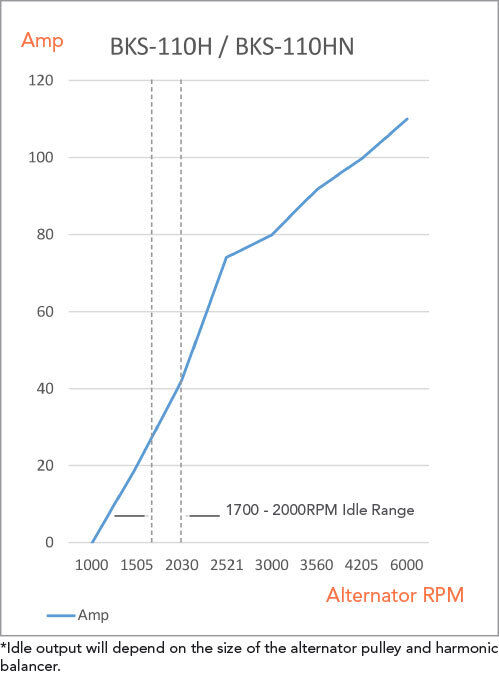

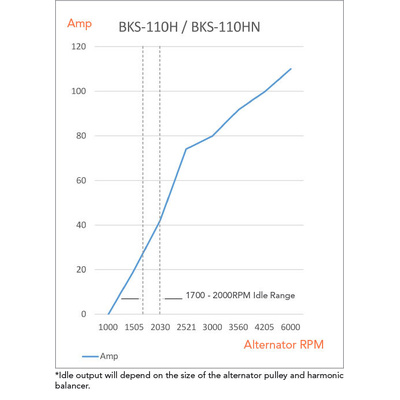

All Black Series alternators have been amperage rated Hot and Cold.

Example:

  • 13.5V @ 125A Cold - Cold is the alternator rectifier at 40ºc (maximum output)
  • 13.5V @ 110A Hot - Hot is the alternator rectifier running at 96ºc for ½ hour (normal operating condition

Features:

  • Enables fuel injection systems & dual thermo fans while maintaining battery performance life
  • Upgraded technology
  • Designed for vehicles with high electrical loads
  • Replaces standard 70A alternators
  • Higher charge at lower RPM
  • Fits Holden 6 & 8 Cyl Red & Blue Motors
  • Mount: Holden 2 1/2" Mount (56mm)

Specifications:

Voltage 12V
Amperage 110A Hot (96c) 126A Cold (40c)
Mount Leg ID 56mm
C-C Mounts 170mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size 17mm
Pulley Type SINGLE "A"
Pulley Grooves 1
Pulley Diameter 64mm
Regulator Type INTERNAL
Series K1
Terminals B+, D+, W
Excitation EXTERNAL
Ground NEGATIVE
Weight (Kg) 6.5kg
SKU BKS-110H
Barcode # 9356659125634
Brand Black Series
