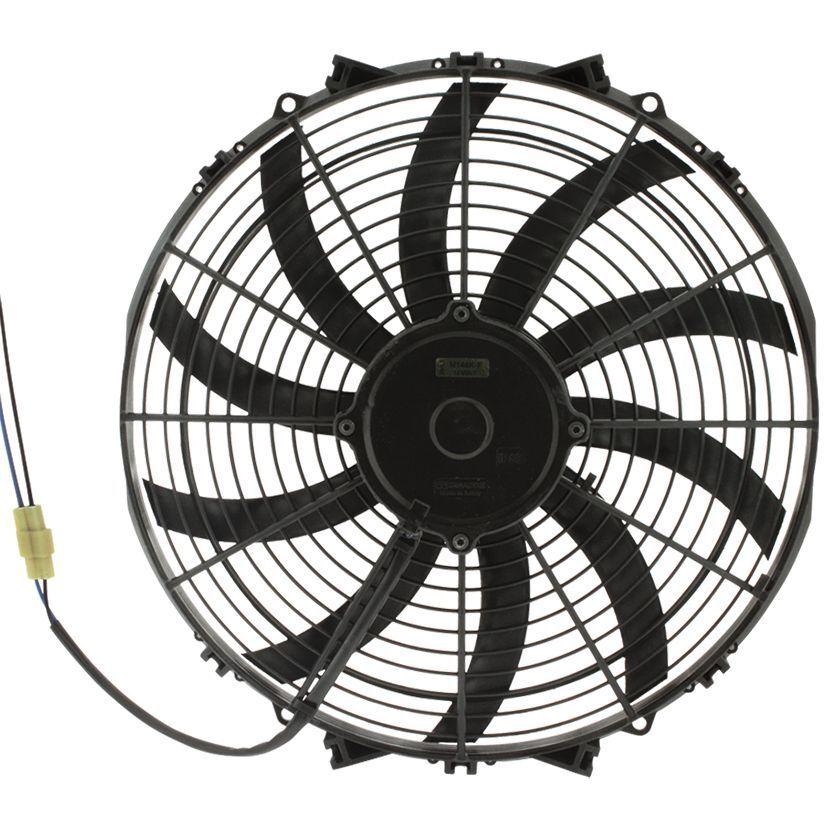

Maradyne Thermo Fan – Champion Series – 14" (356mm) – 12V – 1555 CFM – M146K

Large Diameter. Low Profile. High Output.

The Maradyne Champion Series M146K 14" (356mm) Thermo Fan delivers 1555 CFM (2,643 m³/h) of cooling airflow using a curved blade design optimised for efficiency and quiet operation. Suitable for larger radiators and high-performance cooling setups, it functions as a puller or pusher fan (ships as a puller), giving installers flexibility for a variety of vehicle layouts.
Featuring a sealed IP68-rated 12V motor, the M146K is dust and water resistant, making it ideal for both road and off-road use. The durable glass-filled nylon body and integrated finger-guard shroud ensure easy installation, long service life, and safe operation in harsh conditions.

Specifications:

Feature Details
Maradyne Model # M146K
CoolDrive Code EF8914
Voltage 12V
Flow Direction Puller or Pusher (Reversible)
Blade Diameter 14" (356mm)
Blade Type Curved
Shroud Type Finger-Guard
Airflow (CFM) 1555
Airflow (M³/H) 2643
Current Draw Up to 8.7 Amps
Ingress Rating IP68
SKU EF8914
Barcode # 9316042409222
Brand Maradyne
