Maradyne Thermo Fan – Champion Series – 7" (178mm) – 12V – 375 CFM – M073K

Ultra-Slim. Reversible. Built to Last.

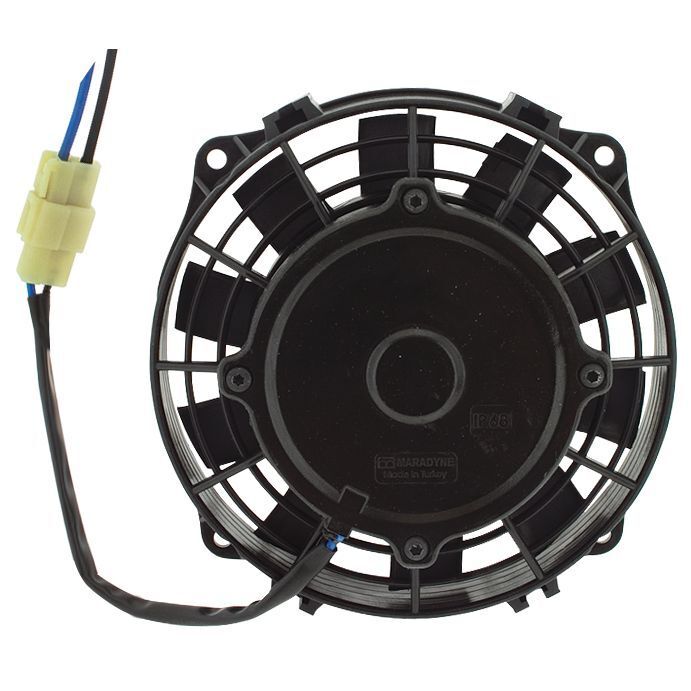

The Maradyne Champion Series M073K 7" (178mm) Thermo Fan delivers 375 CFM (637 m³/h) of cooling performance in one of the lowest profile high-performance fans on the market. Featuring a quiet, reversible straight-blade design, it’s perfect for compact spaces where flexible installation and reliable airflow are essential.
Suitable for both puller and pusher configurations (ships as a puller), the fan uses a sealed IP68-rated 12V motor for long service life and superior protection against water and dust. The all-glass-filled nylon construction includes four 90° mounting feet, a nylon tie kit, rubber heat exchanger spacers, and a locking mating pigtail connector—everything you need for a fast and secure install.

Specifications:

Feature Details
Maradyne Model # M073K
CoolDrive Code EF8901
Voltage 12V
Flow Direction Puller or Pusher (Reversible)
Blade Diameter 7" (178mm)
Blade Type Straight
Shroud Type Finger-Guard
Airflow (CFM) 375
Airflow (M³/H) 637
Current Draw Up to 5.4 Amps
Ingress Rating IP68
