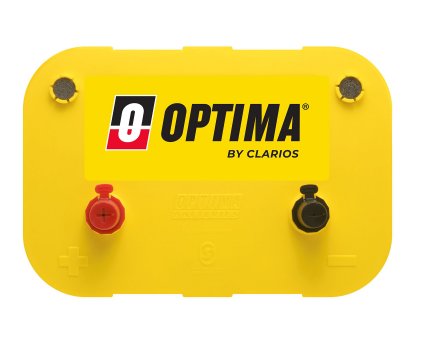

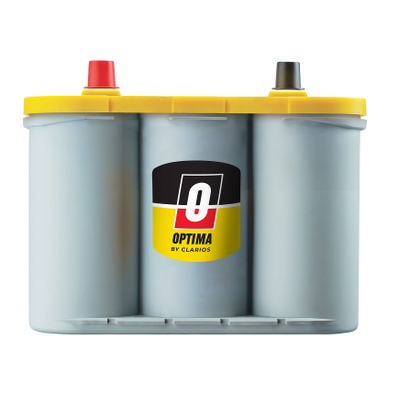

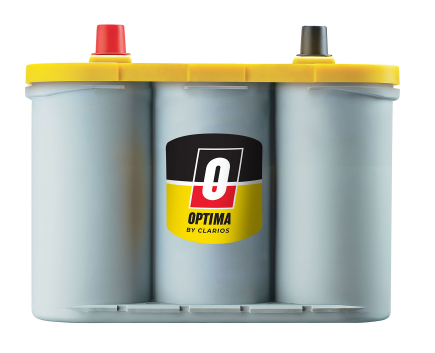

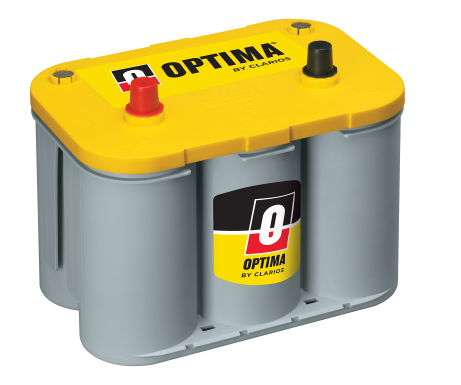

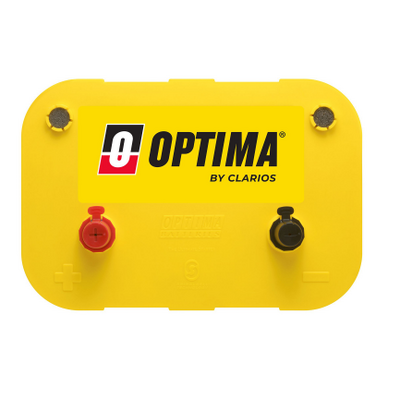

Optima Yellowtop D34 Dual-Purpose 12V Battery

Built for Modern Power Demands with Advanced SPIRALCELL Technology

Optima Batteries provide the ultimate power source, engineered with cutting-edge SPIRALCELL TECHNOLOGY to deliver superior performance, longer life, and unmatched durability. Unlike conventional batteries that use flat plates, the Optima Yellowtop D34 features precision-wound spiral cells that offer greater resistance to vibration damage, faster charging, and dependable starting power—making it one of the few true dual-purpose batteries on the market today.

Key Features:

  • Up to 2x longer life than traditional flat-plate batteries
  • Lower self-discharge rate for prolonged shelf life
  • 15x more vibration resistant than standard lead-acid designs
  • Delivers exceptional cranking power, even in harsh conditions
  • Maintenance-free and non-spillable AGM design
  • True dual-purpose capability: starting and deep-cycle in one battery
  • Low internal resistance for more consistent power output and faster recharge

SPIRALCELL Technology Benefits:

  • Corrosion-resistant terminals
  • Solid moulded cell connectors for superior durability
  • Self-sealing safety valves for added safety
  • Rugged SPIRALCELL construction for maximum vibration resistance
  • Impact-resistant polypropylene case for enhanced protection
  • High-purity lead grids for longer service life
  • Absorbed Glass Mat (AGM) separators to eliminate acid spills

Specifications:

Specification Value
Cold Cranking Amps @ -18°C (CCA) 750
Reserve Capacity @ 25°C 120 minutes
Amp-Hour Capacity @ 20HR 55 Ah
Dimensions (L x W x H) 254 x 173 x 199 mm (10.0 x 6.8 x 7.8 in)
Weight 19.5 kg
Terminal Type STD
Terminal Position Centrally Mounted (LH or RH usable)

Charging Guidelines:

Charging Method Voltage & Details
Alternator Output 13.3 – 15.0 Volts
Battery Charger 13.8 – 15.0 Volts @ 10A for approx. 12–15 hours
Float Charge 13.2 – 13.8 Volts @ 1A max
Rapid Recharge Max 15.6 Volts – no current limit (below 50°C temp)

Power That Performs in Every Situation

From high-performance vehicles and 4x4s to custom builds loaded with accessories, the Optima Yellowtop D34 is your go-to solution for reliable cranking and deep-cycle power. It’s built for those who expect their battery to go further, last longer, and perform flawlessly every time.

Upgrade to the Optima Yellowtop D34 and experience next-level power, consistency, and resilience.

SKU 8012-254
Barcode # 421698711352
Brand Optima
