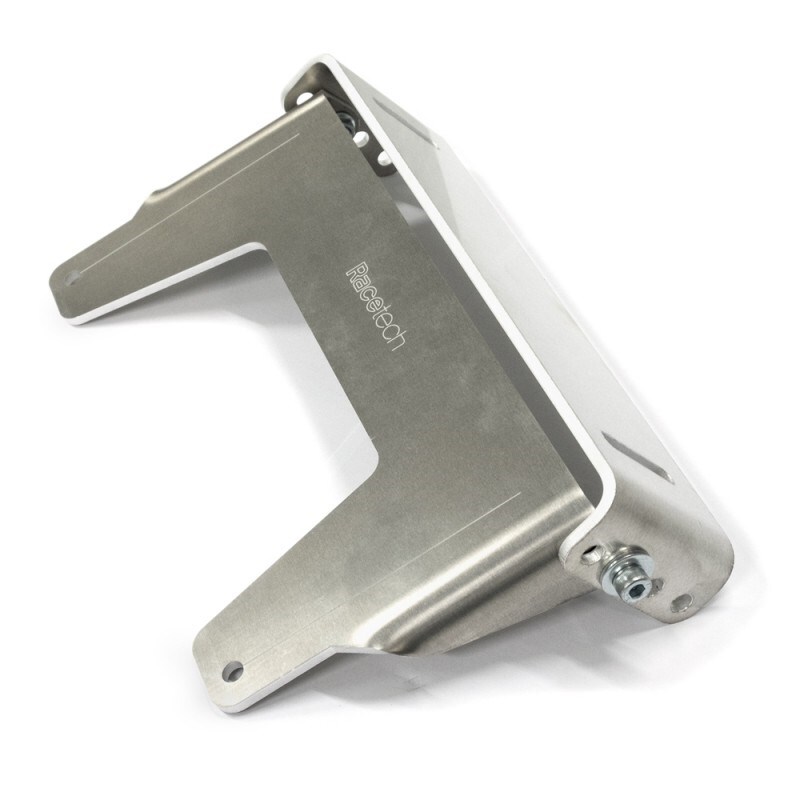

Racetech 2-piece 5mm aluminium (5083) bracket for back-mounting seats. This reconfigurable, adjustable bracket bolts to the shoulder beam of Racetech 4100 or 119 series seats and allows you to fix the seat to the lateral rollcage tube. If using our RTB2005C roll cage clamps (additional part) at least two holes must be drilled to bolt on the clamps, once the seat is set up in the optimum position. Etched reference lines are provided as a guide, but holes can be drilled in other locations if required and using engineering consideration.

Compatible with the following Racetech seats:

  • RT4100, RT4100T, RT4100WT, RT4100HR, RT4100THR, RT4100WTHR
  • RT4119HRW, RT4119THR, RT4119WHR, RT4119WTHR, RT4119W, RT4119WT
  • RT9119HRW, RT9119THR, RT9119WHR, RT9119WTHR

Weight - 0.90kg

Material - 5mm alloy (5083)

Hole Spacing (Seat) - Nom: 250mm

SKU RTB3115B
Barcode # RTB3115B
Brand Racetech Seats
