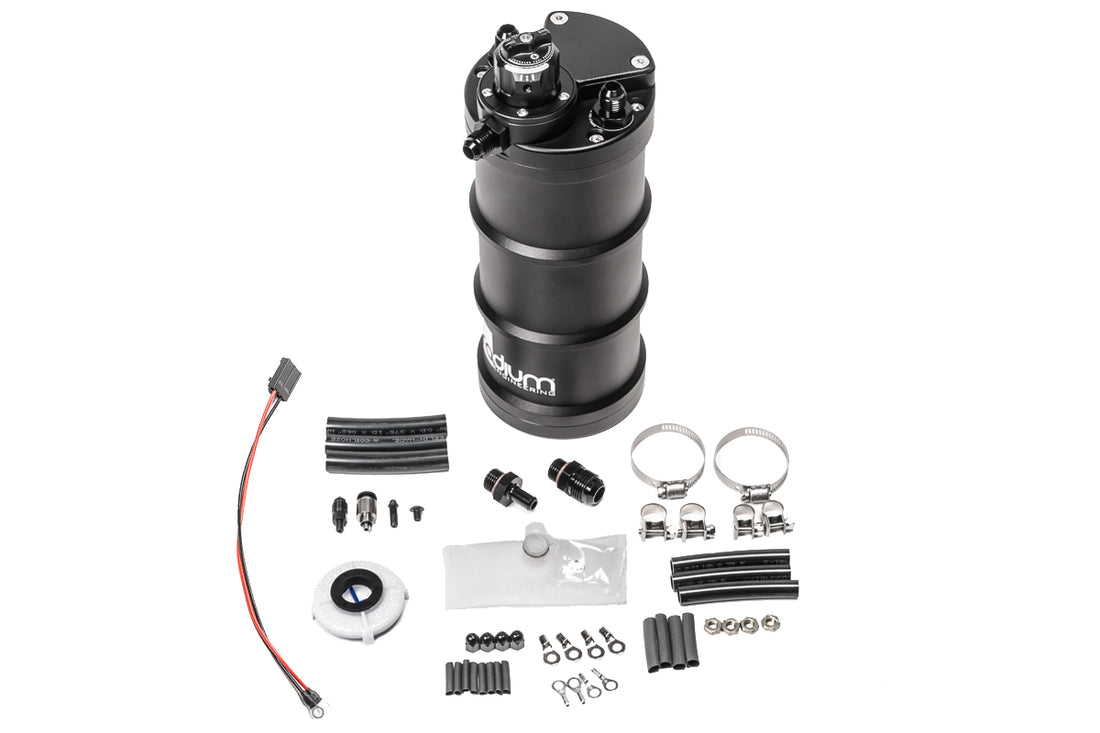

RADIUM FSTR-RA FUEL SURGE TANK – INTEGRATED FUEL PRESSURE REGULATOR

External regulators mean extra fittings, extra hoses, and extra leak points. The Radium FSTR-RA Fuel Surge Tank removes that complexity entirely — a single-pump surge tank with the fuel pressure regulator machined directly into the top cap, simplifying your fuel system while solving starvation on poorly baffled tanks.

ONE COMPONENT, TWO PROBLEMS SOLVED

A surge tank buffers fuel supply to the engine, fed by your OEM lift pump and topped up by regulator return flow — critical on vehicles where hard cornering or braking can starve the fuel pump. The FSTR-RA takes it further: the regulator is built into the tank itself, recirculating fuel internally rather than sending it back through hot engine bay lines. That means simpler installation, less weight, fewer potential leak points, and genuinely cooler fuel at the rail.

TOOL-LESS PRESSURE ADJUSTMENT

Built on the proven RA-series regulator platform, pressure adjustment is handled entirely by hand — no jam nut, no set screw. Detented feedback delivers roughly 1psi (±0.5psi) per turn, and the 360° swiveling vacuum reference port (double O-ring sealed) points any direction without tools. Four interchangeable 10-32 vacuum fittings are included to suit barbed hose, 3AN, push-to-connect, or non-vacuum-referenced returnless applications.

SIMPLIFIED PLUMBING

Two interchangeable top ports handle fuel in (from the lift pump) and overflow (back to the main tank), both fitted with an internal flow deflector to prevent foam and aeration. The regulated output runs straight to the engine from the side port — no external regulator required. A fuel pressure gauge or sensor is still needed downstream to monitor and set pressure.

Key Features:

  • Integrated Fuel Pressure Regulator – Eliminates external FPR, extra fittings, and hoses
  • Tool-Less Adjustment – Detented knob, ~1psi (±0.5psi) per increment
  • 360° Swiveling Vacuum Reference – Double O-ring sealed, 4 interchangeable fittings included
  • Internal Flow Deflector – Prevents fuel foam and aeration at inlet/overflow ports
  • All Ports 6AN ORB – 3x 6AN adapters preinstalled, plus one 6AN-to-8AN male adapter included
  • Broad Pump Compatibility – Configurable with Walbro, Ti Automotive E5LM, AEM, and other 39mm pumps
  • Hermetically Sealed Electrical Terminals – Fuel-resistant, high-current rated, with strain relief and billet dust cap
  • Single-Pump Design – Not available in dual-pump configuration
  • Broad Fuel Compatibility – All gasoline types plus methanol, ethanol, and E85

Specifications:

Feature Details
Manufacturer Part Number 20-1933
Configuration Single internal pump, integrated regulator (pump not included)
Regulator Adjustment Tool-less, detented ~1psi (±0.5psi) increments
Vacuum Reference 360° swivel, double O-ring sealed, 10-32 threaded
Ports 3x 9/16"-18 (6AN ORB) — 2x interchangeable in/overflow, 1x regulated output
Included Fittings 3x 6AN adapters preinstalled, 1x 6AN ORB-to-8AN male adapter
Pump Compatibility Ti Automotive E5LM (brushless), Walbro F90000267/274/285, Walbro GSS341/GSS342, AEM 50-1000/50-1200, and other 39mm pumps
Electrical Hermetically sealed stainless terminals, ETFE-insulated in-tank wiring, anodised acorn nuts
Recommended Accessory Relay kit (e.g. Radium 17-0031) to drive the internal pump
Fuel Compatibility All gasoline types; methanol, ethanol, E85 compatible
Mounting Universal — optional Floor/Wall, Frame, or Angled brackets (sold separately)

Fewer fittings, fewer leak points, cooler fuel. The FSTR-RA is the simplest way to solve fuel starvation and pressure regulation in one component. Pair it with your pump of choice and a mounting bracket to suit your install. Available at Racer Industries.
