SPAL Twin Thermo Fan Puller with Shroud – 11.0" – 12V – 2720 CFM – 2VA06-AP70/LL-37A

Twin Fans. Total Cooling Power.

The SPAL 2VA06-AP70/LL-37A Twin 11.0" (280mm) Puller Fan assembly delivers an incredible 2720 CFM of airflow, combining two high-performance straight-blade fans mounted in a durable open shroud. Designed for high-powered street and race applications, this twin setup ensures maximum radiator coverage and airflow efficiency.
Each fan features a sealed IP68-rated 12V motor for superior protection against water and dust, making it ideal for extreme environments. Whether you're upgrading a high-horsepower build or retrofitting a cooling system for demanding use, this SPAL twin fan setup provides serious performance in a compact footprint.

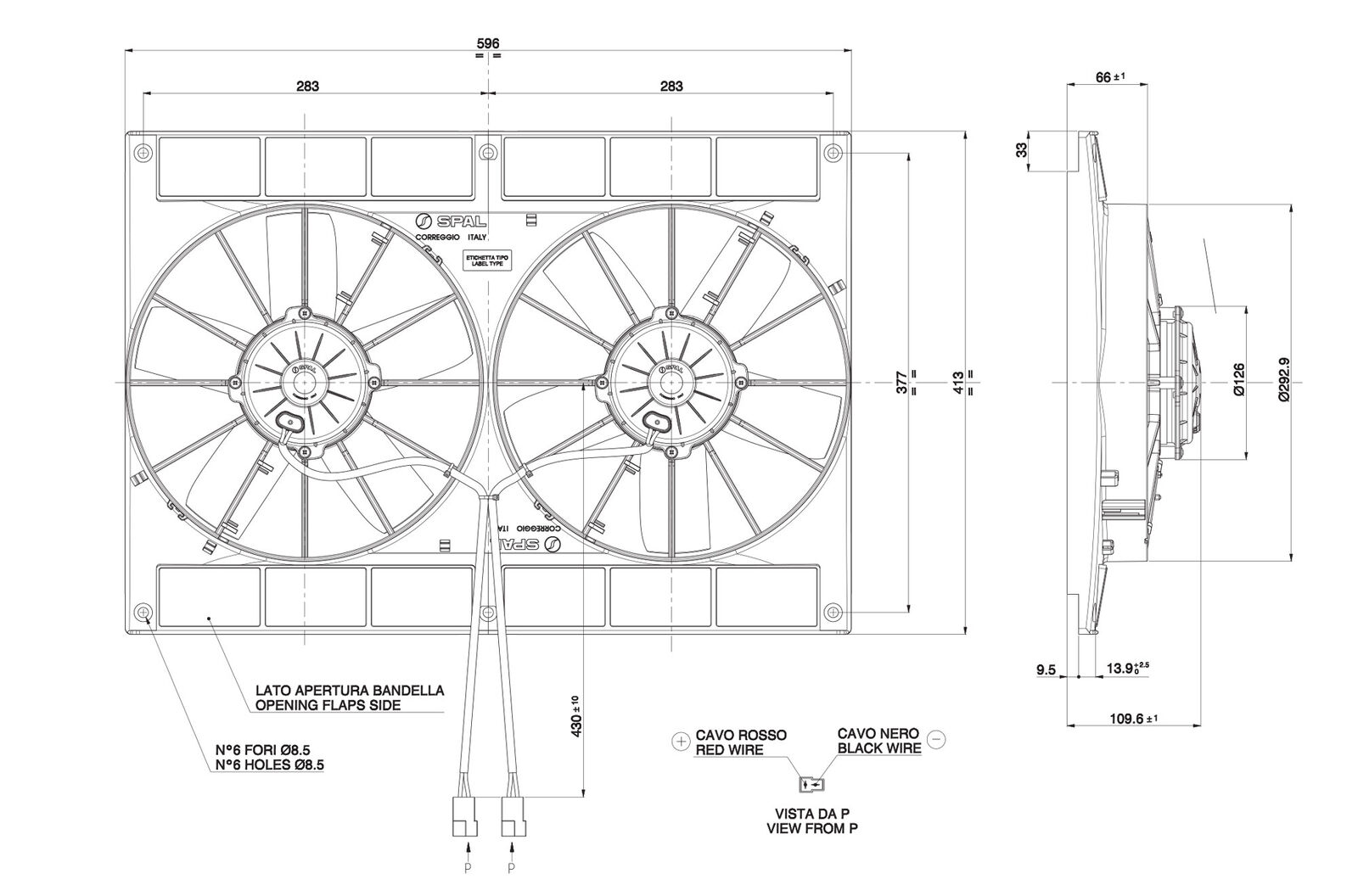

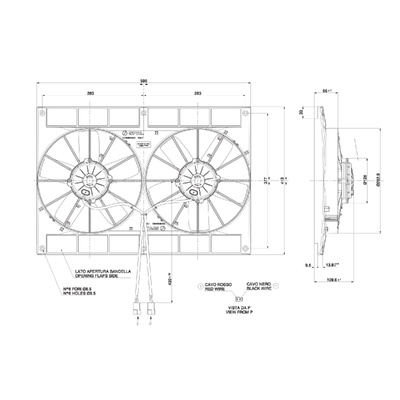

Technical Data Sheet

Specifications:

Feature Details
SPAL Model # 2VA06-AP70/LL-37A
CoolDrive Code EF3580
Voltage 12V
Flow Direction Puller
Blade Diameter 2x 11" (280mm)
Blade Type Straight
Shroud Type Open
Airflow (CFM) 2720
Airflow (M³/H) 4610
Current Draw Up to 39.3 Amps
Ingress Rating IP68
Warranty 3-Year Manufacturer's Cover
SKU EF3580
Barcode # 9316042269246
Brand SPAL
