TI Automotive (Walbro) 250LPH EFI Fuel Pump (F10000305) – E85 Safe

Compact High-Flow Fuel Pump for E85 and Petrol Applications

The TI Automotive (Walbro) F10000305 (Cross Reference – EFP-769) is a compact, 36.5mm EFI fuel pump flowing 250 LPH @ 3 Bar, rated E85 safe for both petrol and ethanol-blended fuel systems. Supplied complete with hose and strainer, it's a straightforward drop-in upgrade for a wide range of EFI and mild boosted applications.

Built with a genuine internal check valve, this fuel pump delivers:

  • 250 LPH flow rate – @ 3 Bar
  • E85 Safe – suitable for petrol and ethanol-blended fuels
  • Internal check valve – maintains system pressure and improves hot-start reliability

Flow Chart & Pump Diagram

F10000305 Flow Chart

F10000305 Dimensional Drawing (PDF)

Technical Specifications

  • Common Names / Cross Reference: Walbro F10000305, EFP-769
  • Flow Rate: 250 LPH @ 3 Bar
  • Current Draw: 10A @ 3 Bar
  • Pump Diameter: 36.5mm
  • Length: 115mm (including barb)
  • Check Valve: Yes
  • E85 Safe: Yes
  • Mounting Type: In-Tank

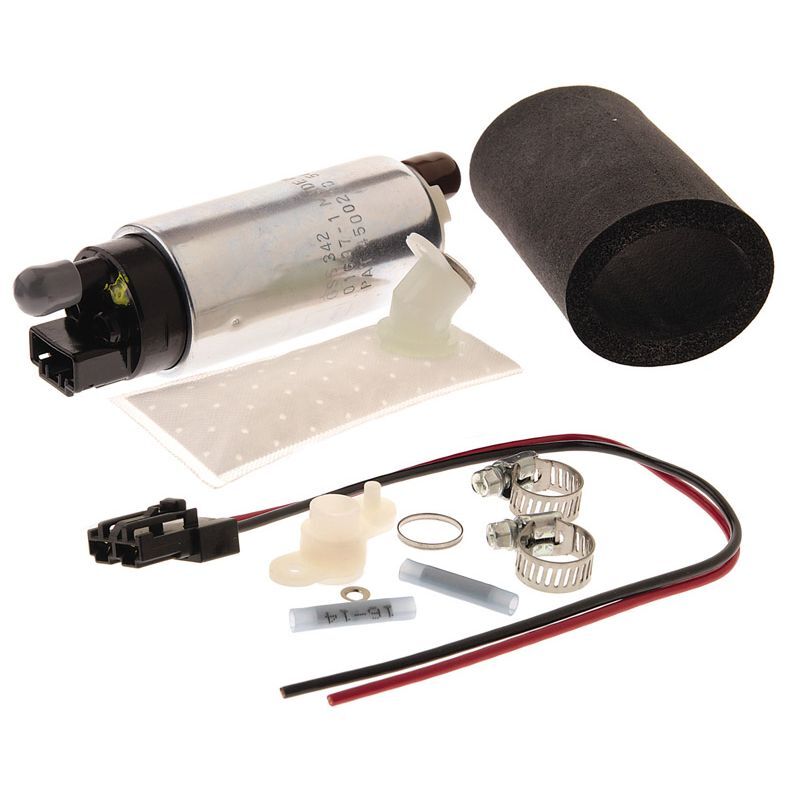

Includes hose and strainer.
