Walbro 460 High-Pressure In-Tank Fuel Pump (F90000274) – E85 Compatible

Unmatched Fuel Flow for High-Performance Builds

The Walbro 460 High Pressure Fuel Pump (F90000274) — also widely known as the Walbro 450 (Cross Reference – EFP-452) — is the go-to solution for high-power boosted applications running E85, ethanol, or high-octane fuels. Built for high-boost setups exceeding 30 psi, this pump is a proven step up from standard in-tank pumps like the Walbro 255, which run out of capacity once boost and fuel demand climb.

Built with dual-row turbine impellers, this fuel pump delivers:

• Lower current draw – 15A average, 22A max
• Quieter operation – Less noise compared to older gear-driven pumps
• Higher pressure relief (112psi) – Perfect for extreme boost levels

Vehicle Compatibility

Suits the following vehicles (along with many others) with minor cradle modifications:

• Ford Falcon BA, BF, FG, FG X & XR6 Turbo
• Holden Commodore VT, VX, VY, VZ, VE, VF
• Subaru WRX
• Nissan Skyline, Silvia, 180SX
• And many more high-performance vehicles

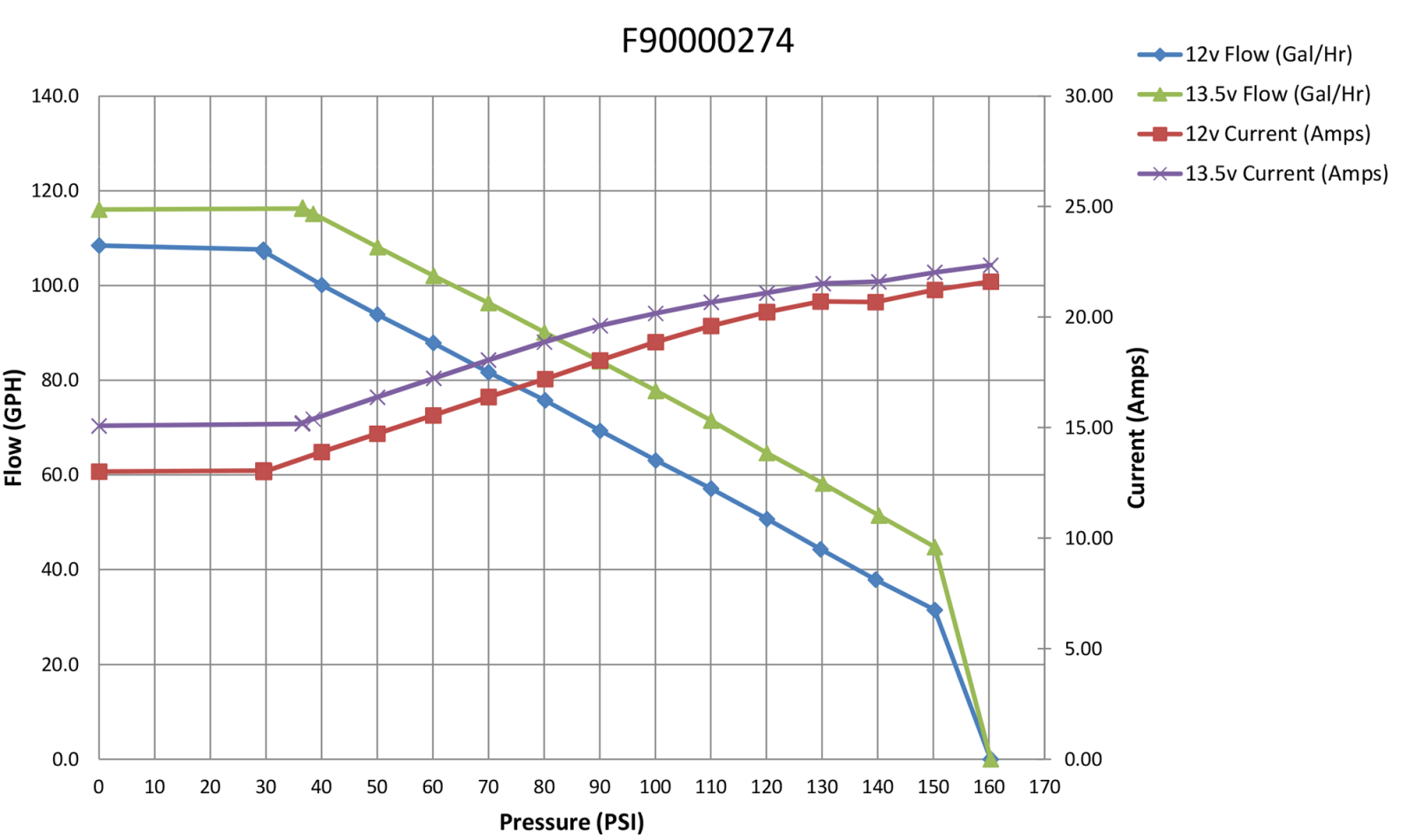

Flow Chart & Pump Diagram

Technical Specifications

• Common Names / Cross Reference: Walbro 460 High Pressure, Walbro 450, TIA485-2, GST-450, Walbro 465, 400E, EFP-452
• Flow Rate: 415LPH @ 13.5V (3 bar)
• Max Current Draw: 22A (15A average)
• Body Diameter: 39mm / 50mm
• Pump Length: 131mm
• Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
• Pressure Relief Valve: 112psi (see our other listings for the 87psi version)
• Check Valve: Inbuilt
• E85 Compatible: Yes

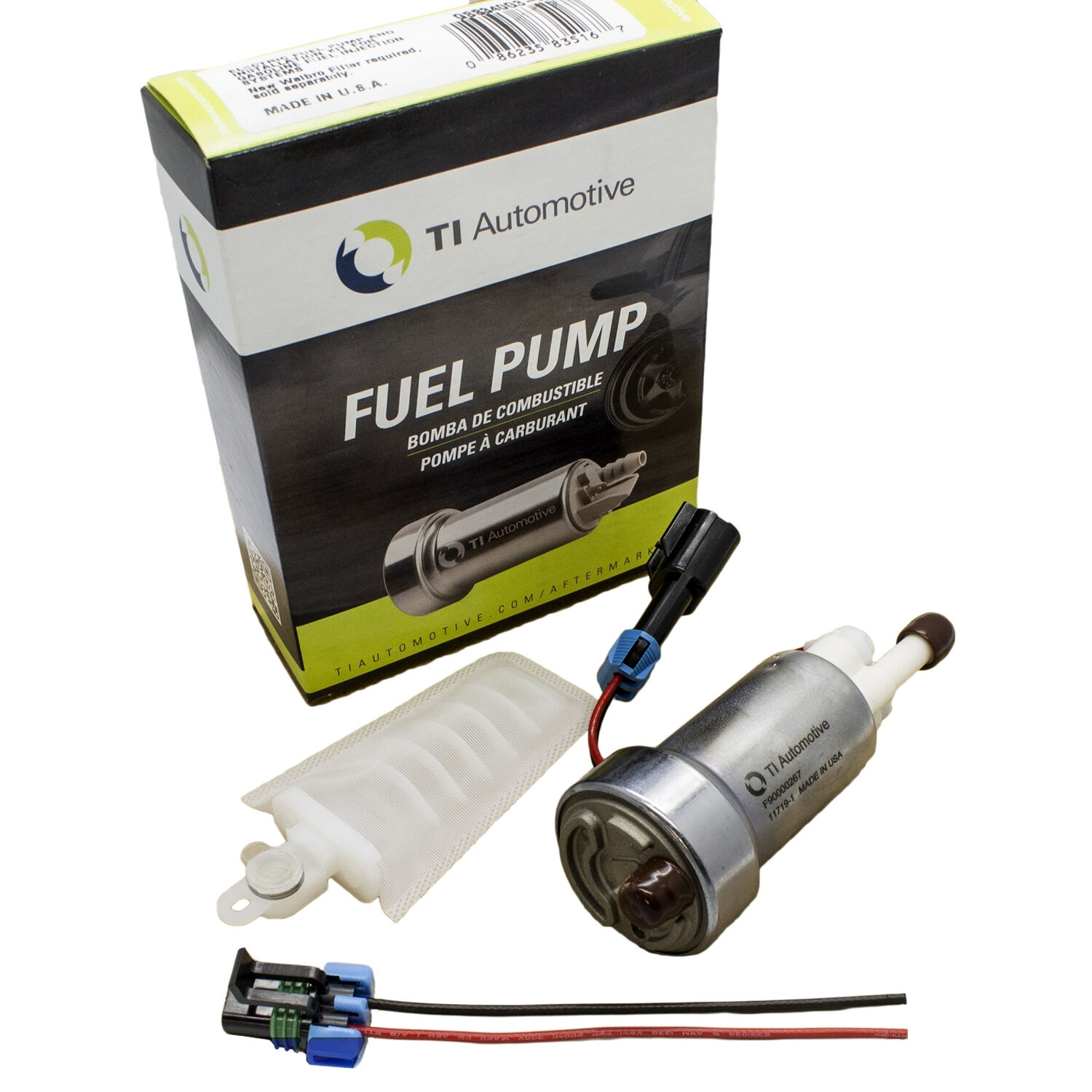

Includes full installation kit: Fuel pump, wiring harness, and pickup filter.
