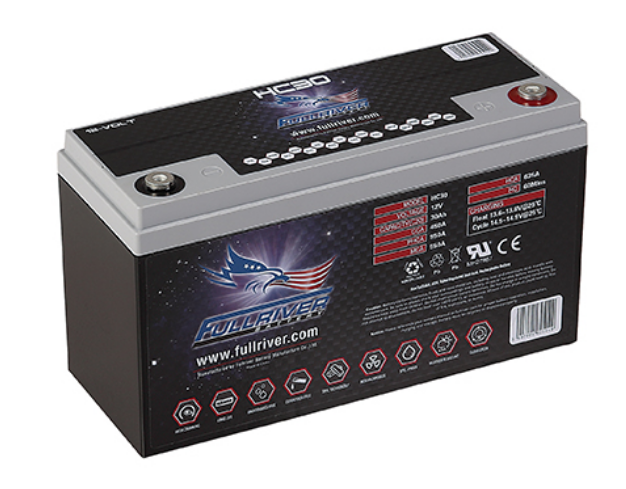

Fullriver HC30 AGM 12 Volt Battery

Compact Power for High-Performance Builds

The Fullriver HC30 is a high-performance battery from the globally respected Fullriver HC Series. With advanced AGM (Absorbent Glass Mat) technology, this battery is completely sealed, maintenance-free, and capable of withstanding tough conditions from the racetrack to the trail. Offering up to 950 pulse cranking amps and fast recharging from its low internal resistance, the HC30 is ideal for motorsport, powersports, marine, 4x4, and performance applications that require reliable starts and sustained power. Its rugged ABS casing and sleek black finish reflect the premium quality within—making it as durable as it is powerful.

Key Features:

Spill-Proof & Maintenance-Free – safe and reliable for motorsport and performance use
Rapid Recharge – high-purity lead construction with low internal resistance
Exceptional Cranking Performance – 950 PHCA and 450 CCA
Long Reserve Capacity – 60 minutes @ 25A
Low Self-Discharge – ≤ 3% per month at 25°C
Compact, Rugged ABS Case – flame-resistant and built for harsh conditions
Ideal for performance cars, 4WDs, marine, racing, audio and off-road setups

Specifications:

Category	Details
Nominal Voltage	12 Volt
C20 Capacity	30 Ah
C5 Capacity	26 Ah
CCA (Cold Cranking Amps)	450 A
CA/MCA (Cranking Amps)	550 A
HCA (Hot Cranking Amps)	635 A
PHCA (Pulse Cranking Amps)	950 A
Reserve Capacity @ 25A	60 minutes
Short Circuit Current	1660 A
Internal Resistance	7.5 mΩ
Self-Discharge @ 25°C	≤ 3% per month

Mechanical Specifications:

Dimension	Value
Terminal Type	M6 Stud Terminal
Terminal Torque	3.5 – 5.0 Nm (31 – 44 in-lbs)
Height (with terminal)	156 mm (6.14 in)
Height (case only)	142 mm (5.59 in)
Width	97 mm (3.82 in)
Length	250 mm (9.84 in)
Weight	10.1 kg (22.17 lbs)
Case Material	ABS Plastic (UL94-HB flame rated)

Operational Data:

Operating Temperature Range	-20°C to +50°C (-4°F to 122°F)
Cold Weather Use	Maintain >60% charge below 0°C (32°F)

Charging Guidelines:

Parameter	Range/Limit
Max Charge Current	25% of C20 (7.5 A)
Absorption Voltage	14.4V – 14.7V
Float Voltage	13.5V – 13.8V

Compact Power for High-Performance Builds

The Fullriver HC30 is purpose-built for vehicles that demand more. Depend on its rapid cranking ability to deliver peak output when you need it most.
Trust Fullriver HC30 to power your passion with performance, endurance, and reliability.
