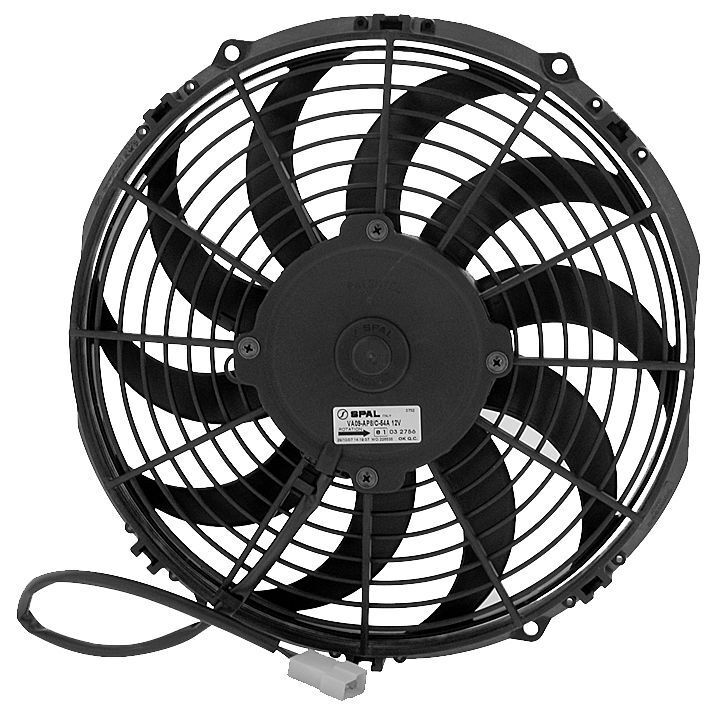

SPAL Thermo Fan Puller – 11.0" – 12V – 815 CFM – VA09-AP8/C-54A

Big Air. Compact Efficiency.

The SPAL VA09-AP8/C-54A 11.0" (280mm) Puller Fan uses a curved blade configuration to pull an impressive 815 CFM of airflow. Designed for high-output cooling in tight engine bays, this fan is ideal for street, race, 4x4, and performance builds needing serious airflow in a mid-size package.
Fitted with an IP68-rated 12V motor, it's completely sealed against water and dust for reliable operation under extreme conditions. The finger-guard shroud provides added protection while maintaining optimal airflow, making it a trusted solution for OEM and aftermarket cooling systems.

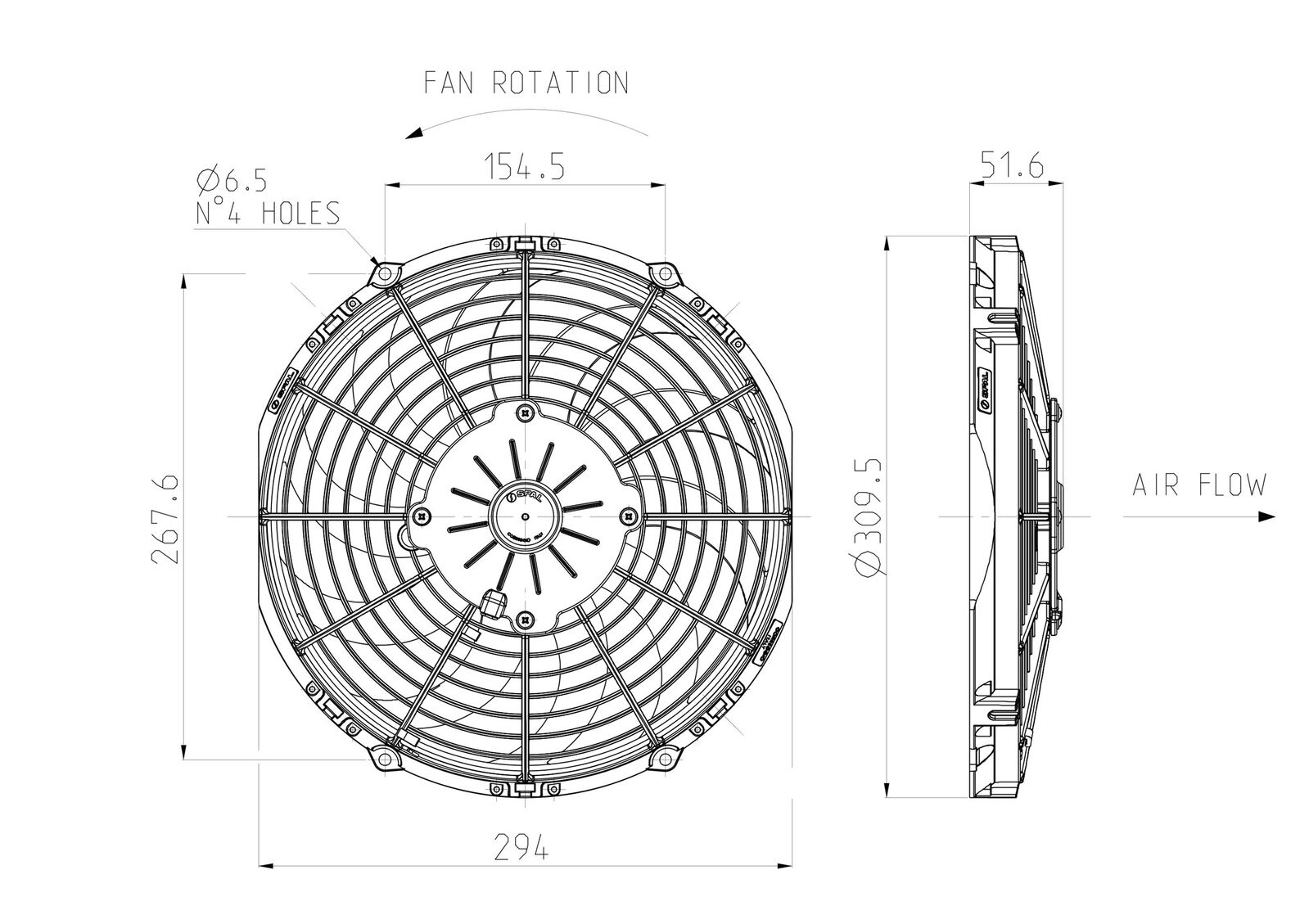

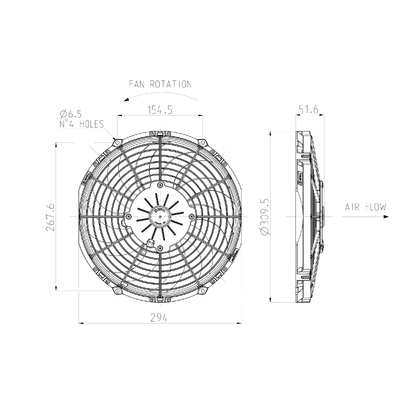

Technical Data Sheet

Specifications:

Feature Details
SPAL Model # VA09-AP8/C-54A
CoolDrive Code EF3530
Voltage 12V
Flow Direction Puller
Blade Diameter 11" (280mm)
Blade Type Curved
Shroud Type Finger-Guard
Airflow (CFM) 815
Airflow (M³/H) 1384
Current Draw Up to 6.9 Amps
Ingress Rating IP68
Warranty 3-Year Manufacturer's Cover
SKU EF3530
Barcode # 9316042111026
Brand Spal
