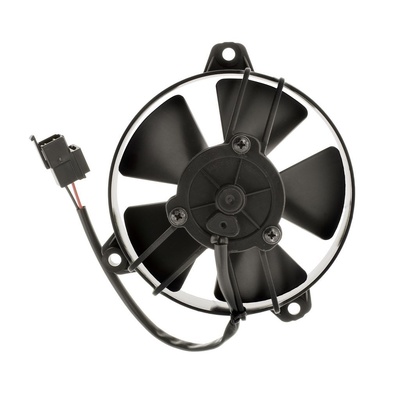

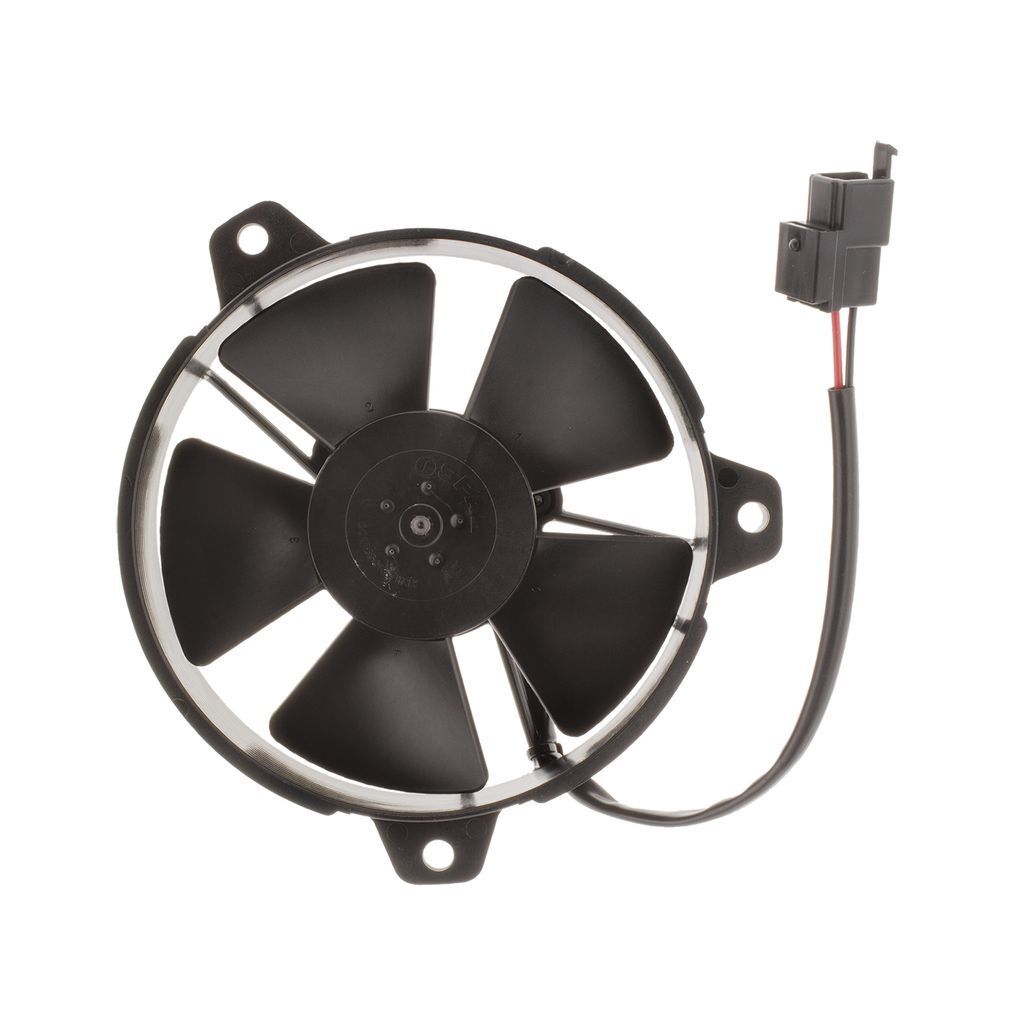

SPAL Thermo Pusher Fan – 5.2" (132mm) – 12V – 315 CFM – VA31-A101-46S

Compact Performance. Built to Endure.

The SPAL VA31-A101-46S (EF3569) 5.2" (132mm) Pusher Fan delivers 307 CFM of airflow through a high-efficiency paddle blade design. Engineered for motorsport, automotive, and motorcycle cooling applications, it’s ideal where space is limited and performance is critical.

With a powerful 12V motor rated to IP68 for dust and water resistance, the VA31-A101-46S is triple-balanced for superior durability and long service life. Backed by SPAL’s 3-year manufacturer’s warranty, it’s trusted by racers and builders worldwide.

ⓘ Note: This model does not feature foot slots and is incompatible with SPAL mounting feet.

Technical Data Sheet

Specifications:

Feature Details
SPAL Model # VA31-A101-46S
CoolDrive Code EF3569
U.S. Part # 30103013
Voltage 12V
Flow Direction Pusher
Blade Diameter 5.2" (132mm)
Blade Type Paddle
Shroud Type Open
Airflow (CFM) 315
Airflow (M³/H) 535
Current Draw Up to 6.2 Amps
Ingress Rating IP68
Warranty 3-Year Manufacturer's Cover
SKU EF3569
Barcode # 9316042557343
Brand Spal
