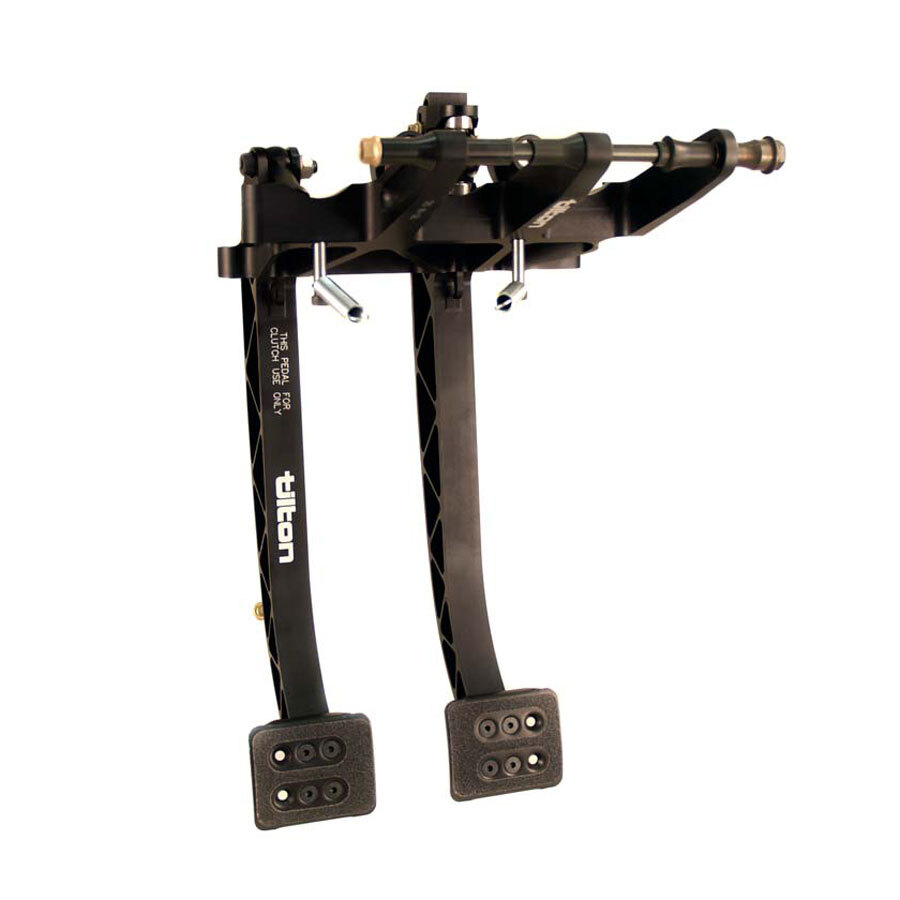

Tilton’s 900-Series overhung pedal assembly features the latest in pivot-mount master cylinder technology that offers the ultimate in balance bar efficiency, providing exceptional driver feedback and repeatable braking. Pedal assemblies are available in floor-mount, firewall-mount and overhung configurations.

Features:

  • Pivot-mount master cylinders and fixed “gimbal-type” balance bar virtually eliminates the common problem of brake bias migration through braking zone.
  • Billet aluminum frame and pedals with adjustable foot pads and anti-slip surface.
  • Adjustable pedal ratios (4.7:1, 5.5:1, 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
  • 7/16”-20 balance bar provides maximum rigidity.  Integrated angle limit in case of front or rear brake circuit failure.  Longer clevis for increased front master cylinder stroke.
  • Needle bearings utilized at all pedal pivots.
  • Adjustable clutch pedal stop prevents clutch over-stroking.

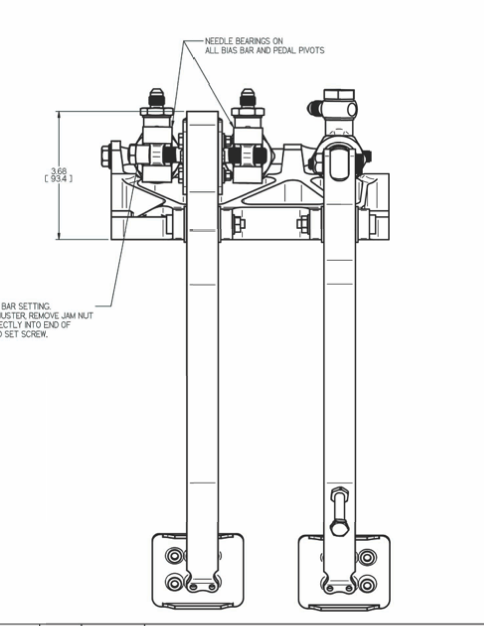

Click the icons below to download the installation drawings and instructions



SKU 72-902
Barcode # TI 72-902
Brand Tilton
