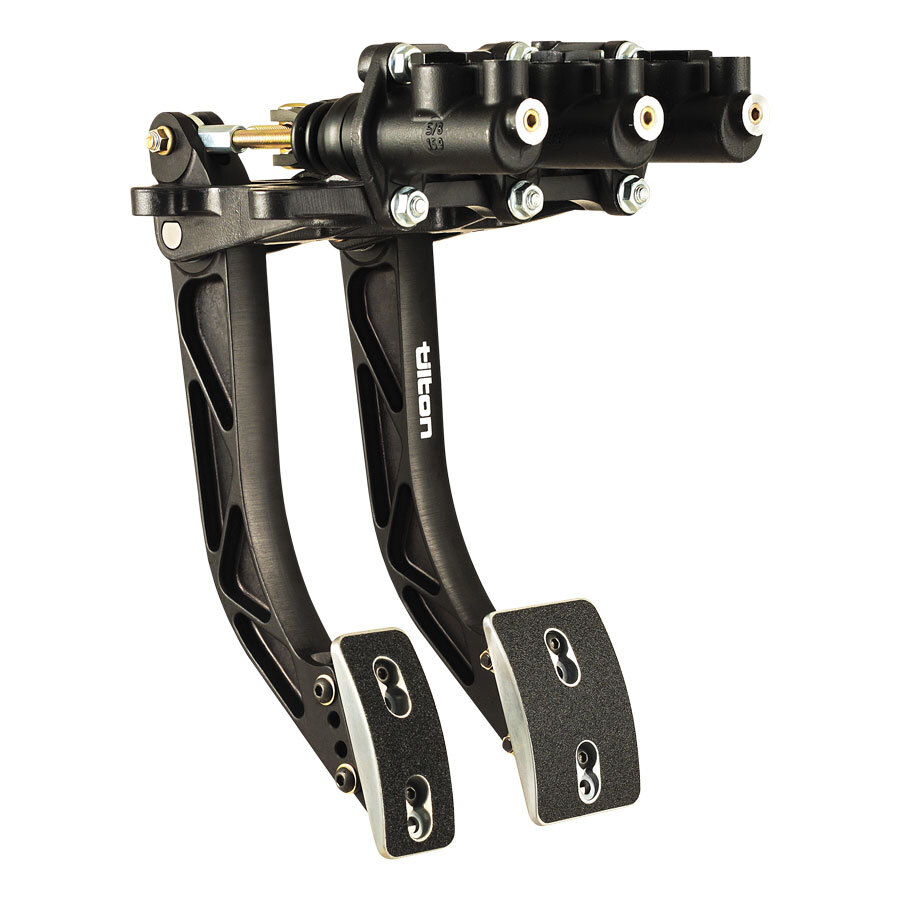

Tilton 600-Series 2-Pedal Overhung-Mount Pedal Assembly (Brake/Clutch)

Built for serious motorsport, the Tilton 600-Series overhung aluminium pedal assembly delivers precise, repeatable braking performance at a competitive price. With fixed-mount master cylinder locations and a true motorsport balance bar, it gives drivers the adjustability, feedback, and confidence to push harder, lap after lap.

Key Features

  • Forged aluminium pedals for high rigidity with low weight
  • Adjustable pedal ratio: 5.0:1 – 6.2:1
  • Foot pads adjustable vertically, horizontally, and in angle
  • Large-diameter balance bar 7/16"-20 UNF (≈ 11.11 mm × 1.27 mm pitch) for maximum rigidity
  • PTFE-coated aluminium clevises for durability and reduced friction
  • Wave washers at pivots minimise lateral movement
  • Oil-impregnated bronze bushings reduce stiction
  • Lightweight aluminium frame with guide “ramps” to reduce balance bar tipping and improve brake repeatability
  • Mounting location: Under dash (overhung)

Specifications

Feature Details
Assembly Type 2-pedal (Brake/Clutch), Overhung (Under-Dash)
Pedal Material Forged aluminium
Pedal Ratio Adjustable 5.0:1 – 6.2:1
Balance Bar 7/16"-20 UNF (≈ 11.11 mm × 1.27 mm pitch), PTFE-coated clevises
Pivot Hardware Wave washers; oil-impregnated bronze bushings
Weight 4.8 lb (≈ 2.18 kg)
Mounting Under-dash fixed master cylinder positions

Click the icons below to download the installation drawings and instructions.



Watch the Tech Videos below

SKU 72-608
Barcode # 72-608
Brand Tilton
