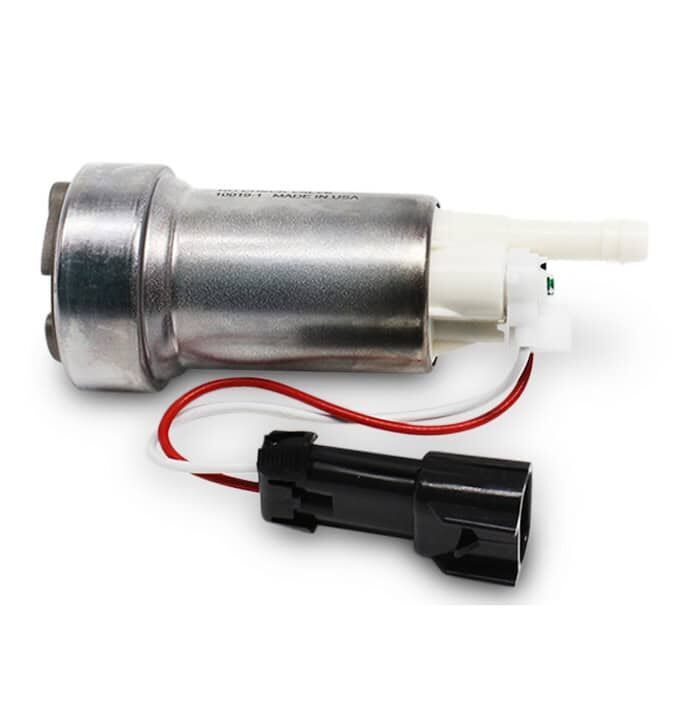

TI AUTOMOTIVE / WALBRO 535LPH IN-TANK FUEL PUMP – E85 COMPATIBLE – F90000295

When a single 255LPH pump can't keep up with a serious turbo or E85 build, the Genuine Walbro/TI Automotive F90000295 (Cross Reference – EFP-622) is where builders go next. It's Walbro's highest-flowing in-tank brushed fuel pump, engineered for high-horsepower gasoline and E85 applications that demand serious, sustained fuel volume — genuine stock, sourced through Racer Industries.

THE NEXT STEP UP FROM THE WALBRO 460

Flowing 535 litres per hour at 40psi, the F90000295 is built for engines pushing well past what a standard high-output pump can support — up to 985HP+ at 60psi in naturally aspirated applications (900HP+ at 90psi). It uses Walbro's DCSS twin-turbine design, feeding fuel through two parallel high-pressure pumping channels instead of a single-row impeller, for stronger hot fuel flow and lower current draw than a conventional single-stage pump.

NO CHECK VALVE — BUILT FOR RACE APPLICATIONS

This pump does not have an internal check valve. That's a deliberate design choice for racing applications where builders want to bleed off system pressure and build oil pressure prior to start-up — but it also means the F90000295 is not suitable for staged multi-pump systems without an external check valve in the line. Confirm compatibility with your fuel system design before fitting.

PETROL OR E85 — YOUR CHOICE

All pumping components are validated for E85/flex-fuel use as well as standard pump fuel, so this pump suits both dedicated E85 builds and high-output gasoline setups without needing a different unit for each.

Key Features:

• Common Names / Cross Reference: Walbro F90000295, EFP-622
• 535 LPH Flow Rate – Tested at 40psi
• Supports 985HP+ – Naturally aspirated at 60psi (900HP+ at 90psi)
• E85 & Pump Fuel Compatible – Validated for flex-fuel applications
• DCSS Twin-Turbine Technology – Improved hot fuel flow, lower current draw
• No Internal Check Valve – Purpose-built for racing fuel system design
• 39mm / 50mm In-Tank Body – Fits most popular EFI in-tank applications
• Includes Fitting Kit – Racer Industries-supplied fitting kit included

Specifications:
